RCA Dimensia A/V Component - VKT700 VCR


Previous Component | Next Component | Dimensia Main Page

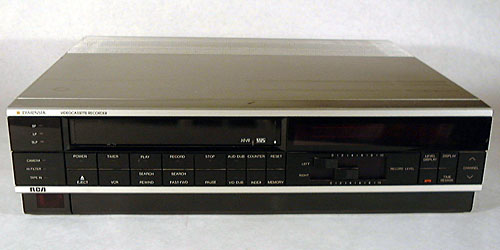

Dimensia VKT700 Video Cassette Recorder

RCA Dimensia VKT700 VCR


  • This VCR could be controlled with CRK35A Dimensia system remote control or the 160829 remote included with the VCR
  • Later Dimensia VCR's include the VPT630HF and the VPT695HF.


  • Record and Playback System:
    Video: Five Video Heads
    Audio: Two Hi-Fi playback heads
  • Antenna:
    VHF: 75-ohm external terminals
    UHF: 300-ohm external terminals
  • Tuner:
    Type: Frequency Synthesis
    Broadcast Channels: VHF 2-13, UHF 14-83
    CATV Channels: Midband A-5 through I; Superband: J through W; Hyperband: W+1 through W+23
  • VHS Hi-Fi Audio:
    Frequency Response: 20 Hz to 20 KHz
    Dynamic Range: Greater than 80 dB
    Wow and Flutter: 0.005%
    Total Harmonic Distortion: 0.4%
    Channel Separation: 60 dB
  • Video Standard:
    EIA Standard; NTSC
  • Power Source:
    120 Volts, 60 Hz
  • Power Consumption:
    48 Watts
  • Dimensions:
    17.1" x 4.4" x 14.6"
  • Weight:
    20.0 lbs.
