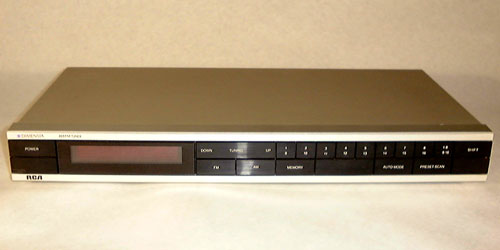

Dimensia MAT110 AM/FM Tuner

Notes:

• This was the only stand-alone tuner available for the Dimensia system.
• In 1987 the tuner was incorporated into the MSR250 Receiver and the MPT200 A/V Control Center of the Dimensia system.

Specifications:

• FM Frequency Range:
  87.9 to 107.9 MHz (0.2 MHz increments)
• AM Frequency Range:
  530 to 1620 KHz (10 KHz increments)
• FM Sensitivity:
  10.8 dBf (IHF)
• AM Sensitivity:
  20 uV (IHF), 200 uV/meter (IHF loop)
• FM Signal-to-Noise Ratio:
  Mono: 75 dB (IHF).
  Stereo: 68 dB (IHF)
• AM Signal-to-Noise Ratio:
  46 dB
• FM Selectivity:
  55 dB (+/- 400 KHz, IHF)
• AM Selectivity:
  30 dB
• FM Image Rejection Ratio:
  45 dB
• AM Image Rejection Ratio:
  43 dB
• FM IF Rejection Ratio:
  75 dB
• AM IF Rejection Ratio:
  70 dB
• FM Total Harmonic Distortion:
  Mono, 0.15%.
  Stereo: 0.3%
• FM Frequency Response:
  30 Hz to 15 KHz, +/- 2 dB
• FM Stereo Separation:
  45 dB @ 1000 Hz
• FM Capture Ratio:
  1.0 dB
• AM Suppression Ratio:
  56 dB
• FM Antenna:
  75 Ohm unbalanced, 300 Ohm balanced
• AM Antenna:
  Loop
• Power Source:
  120 Volts, 60 Hz
• Power Consumption:
  7 Watts
• Dimensions:
  17.1" x 2.4" x 9.0"
• Weight:
  5.3 lbs.
